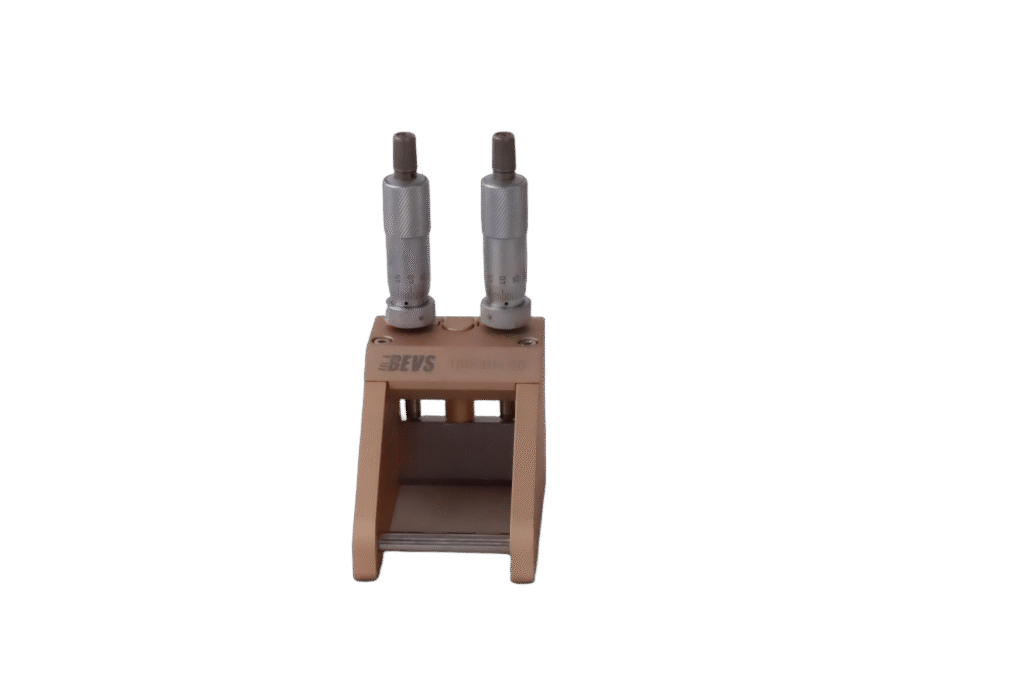

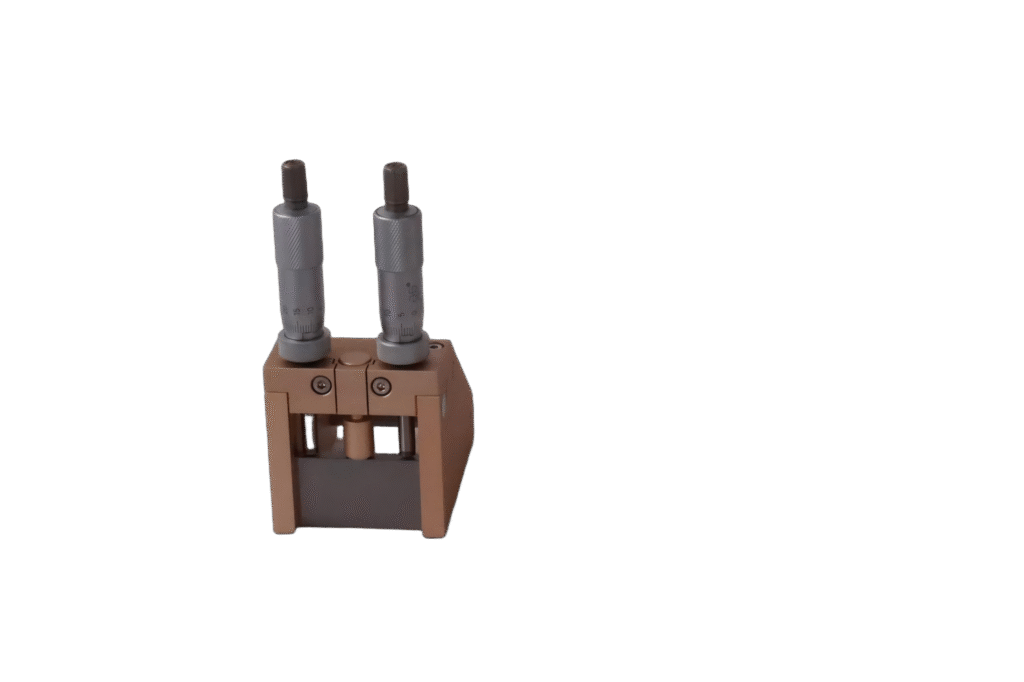

Adjustable Film Applicator
Description:
The adjustable film applicator allows application on a flat substrate with a defined wet film thickness. The wet film thickness can be varied using the two adjusting screws from 0 till 3.500 µm (in 10 µm steps). The scraper blade can be removed for better cleaning after application.
The instrument can be used manually or even better with an automatic film applicator.
The adjustable film applicator is available in 6 different film widths: 50, 100, 150, 200, 250 or 300 mm.
Technical specifications:
– Wet film thickness: 0-3.500 µm
– Adjustable in 10 µm steps
– Made of stainless steel
– Six film widths: 50, 100, 150, 200, 250 and 300 mm
– Precision: ± 2 µm
Item number: PG-1806B/100
Film Width (mm): 100
Standards: ASTM 823
Including manufacturer’s test certificate and 1 year warranty
Other film widths available on request.
